Laney

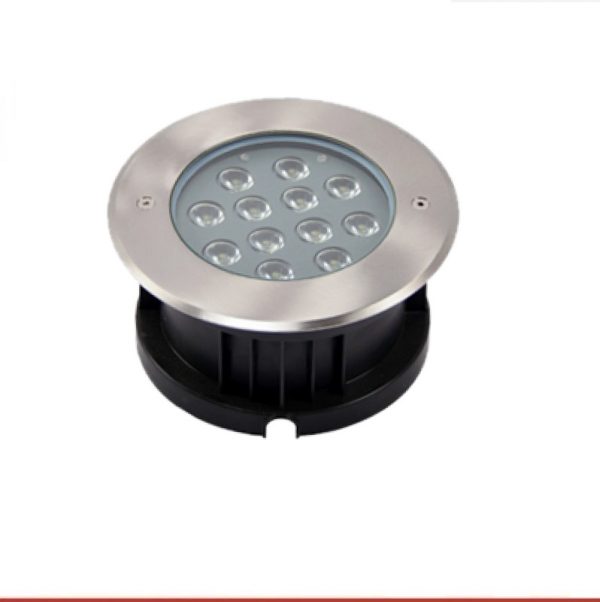

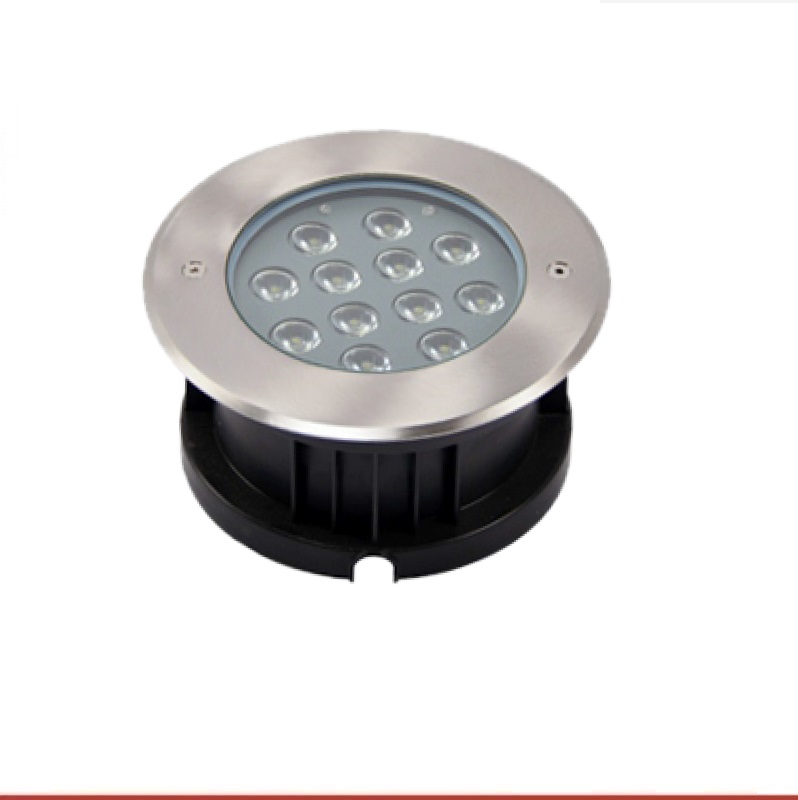

Halius Laney recessed LED in-ground uplight with high quality led technology.It provides high lumen output, Eco friendly solution and rigid construction. Easy to install and long life time. Stainless steel 316 trim.

Make an Enquiry
Categories: , ,

Description

Halius Laney LED in-ground light 9W, 2700K/3000K/4000K, CRI>80+/90+, 15°/30°/45°/60° beam angle, 810lm, Aluminum and Stainless steel body, Tempered glass diffuser, Stainless steel finish, ON-OFF driver, 5yrs Warranty.
• Die-cast aluminum construction with Stainless Steel 316 ring.
• Tempered glass.
• Lens for uniform light distribution.
• Easy installation.
• Suitable for in-ground uplight with Walk over .
• Long working life .

Product Spectfications
Part Number HL-LTG-O-FIG-LANE-R-09W-3000K-30D-SS-ND
Power 9W
CCT 3000K/4000K/6000K
Luminaire Lumen 810lm
Beam Angle 15°/30°/45°/60°
Operating Voltage AC220-240Vac 50/60Hz(24Vdc Optional)
CRI 80+/90+
SDCM <3
Life Span 50000Hrs
Driver Type Constant Current-Integrated
Driver Tridonic/Osram/Philips/Meanwell
Reflector/Diffuser Lens material Acrylic
IP IP67
Color Finish Stainless Steel
Ta(ºC) -30º C to 50º C

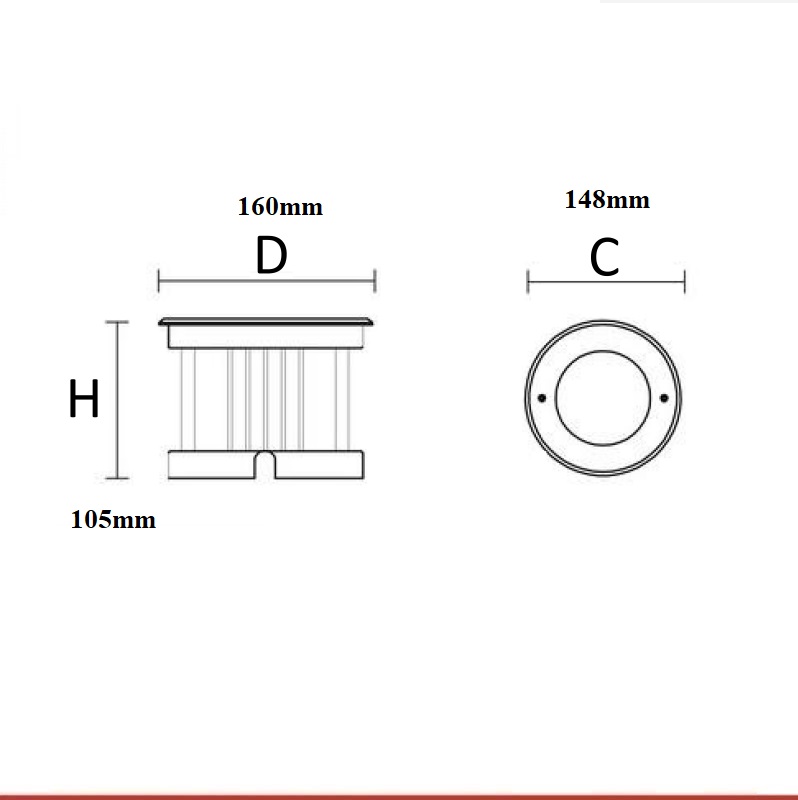

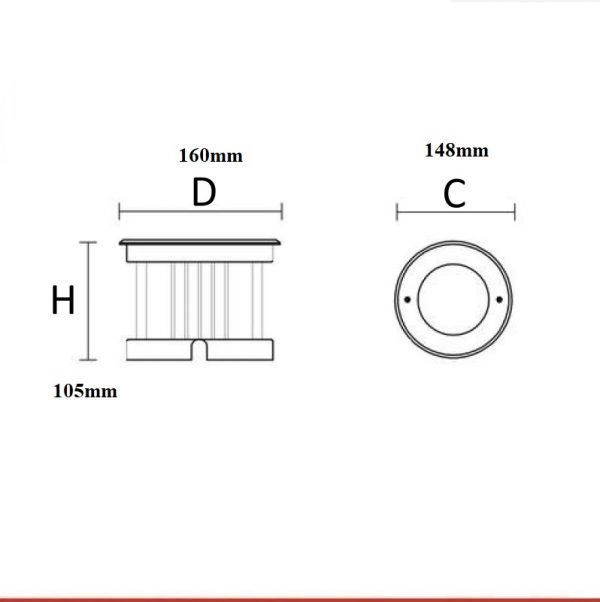

Dimension Φ160mm, H-105mm
Body Material Die cast Aluminum + Stainless steel 316
LED Chip Cree/Osram
Mounting Floor Recessed
Cut-out Φ148mm
Warranty 5yrs
Dimming No
Dimming option DALI/0-10V/1-10V/Phase-cut
