Mycenae 72

Halius Mycenae LED strip light with high quality led technology. It provides high lumen output, Eco friendly solution and they offer more in terms of color options, efficiency, ease of installation and brightness. Excellent heat dissipation and high CRI and great flexibility in mounting. High grade copper clade for better heat mnagement and long life of led, LM80 and cetifications availble.

Make an Enquiry
Categories: , ,

Description

Halius Mycenae LED strip light,72W, 3000K/4000K/6000K, 120° beam angle, 14.4W/meter, 120led/meter, CRI>80+/90+, 5000mm/roll, 12.5mm width, 24Vdc input voltage, IP67, White finish, 5yrs warranty.

* Flexible high quality copper clad PCB.
* Cuttable.
* Uniform light distribution.
* Compact size and easy installation.
* Energy Efficient.
* Less Heat.

Product Spectfications
Part Number HL-LTG-I-SL-MYC-14.4W-120N-3000K-120D-W-IP7
Power 72W
CCT 3000K/4000K/6000K
Luminaire Lumen 7200lm
Beam Angle 120°
Operating Voltage 24Vdc
CRI 80+/90+
SDCM <3
Life Span 50000Hrs
Driver Type Constant Current-Excluded
Driver Tridonic/Meanwell
IP IP67
Color Finish White
Ta(ºC) -20º C to 40º C

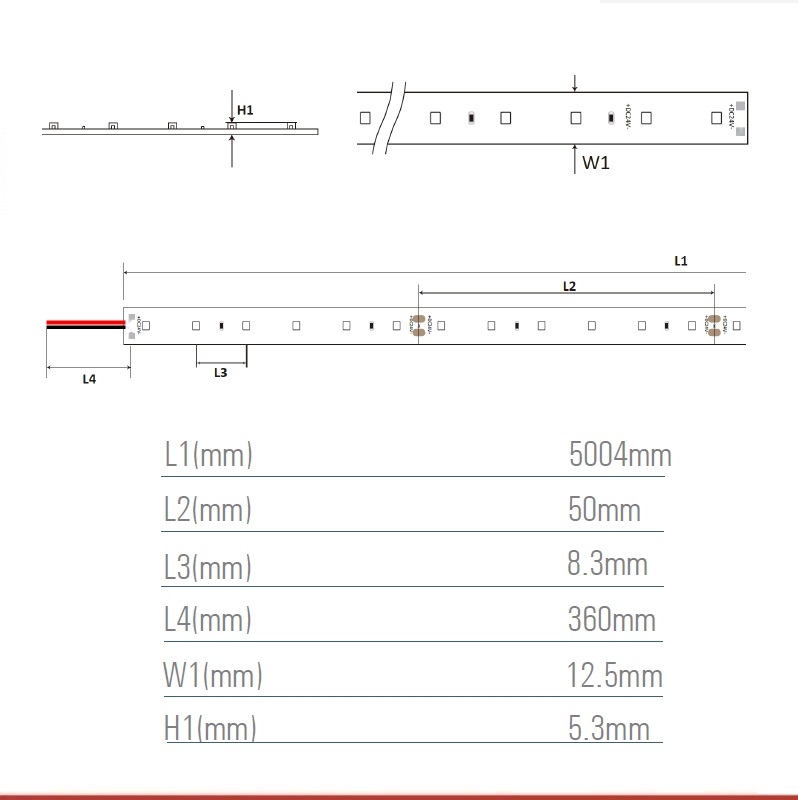

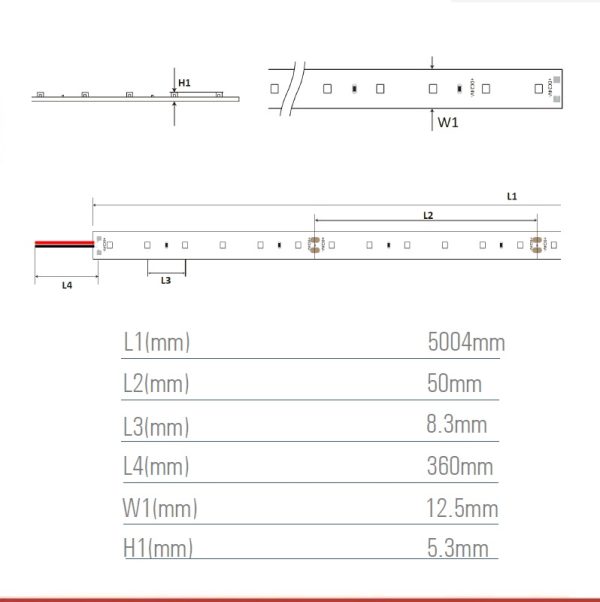

Dimension 5000x12.5x5.3mm(LxWxH)
Body Material Copper Clad
LED Chip SMD 2835
Mounting Surface
Warranty 5yrs
Dimming No
Dimming option DALI/0-10V/1-10V/Phase-cut
