Cataleya

Halius Cataleya Recessed Fixed LED down Light  with high quality led technology. It provides high lumen output, Eco friendly solution and its compact size makes it easy to install. Excellent heat dissipation, Various Reflector, offering uniform and  comfortable light.

Make an Enquiry
Categories: , ,

Description

Halius Cataleya LED down light 10W, 900lm, 3000K/4000K/6000K CCT options, 25°/36°/55° beam angle, Black/White/Grey finish, IP20, Die cast Aluminum body, White Aluminum reflector, ON-OFF control, 5yrs warranty.

* Die-cast aluminum construction with a powder coat paint finish.
* Rigid Construction.
* Uniform light distribution.
* Compact size and easy installation.
* Elegant look.

Product Spectfications
Part Number HL-LTG-I-FDL-CATEL-R-10W-4000K-55D-W-ND
Power 10W
CCT 3000K/4000K/6000K
Luminaire Lumen 900lm
Beam Angle 25°/36°/55°
Operating Voltage AC220-240Vac 50/60Hz
CRI 80+/90+
SDCM <3
Life Span 50000Hrs
Driver Type Constant Current-External
Driver Halius/Philips/Tridonic
Reflector/Diffuser Aluminum
IP IP20
Color Finish White/Black/Grey
Ta(ºC) -20º C to 40º C

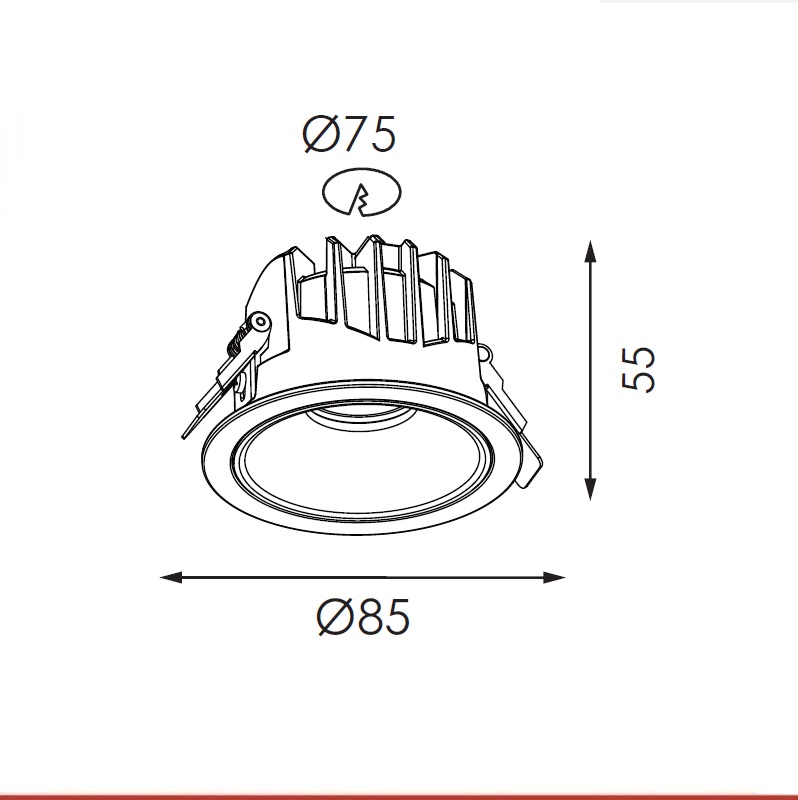

Dimension Φ85mm, H-55mm
Body Material Die cast Aluminum
LED Chip Cree/Osram
Mounting Ceiling Recessed
Cut-out Φ75mm
Warranty 5yrs
Dimming No
Dimming option DALI/0-10V/1-10V/Phase-cut

Datasheet

Download
